DATA ANALYTICS
Advanced Meter Infrastructure (AMI)
Advanced Meter Infrastructure (AMI)
Smart Meter Pilot Project in Pattaya City, Chonburi Province
Thailand is progressing toward becoming a Smart City, with the objective of enhancing the quality of life for its citizens in alignment with the Thailand 4.0 initiative. Pattaya has been identified as one of the key cities to be developed into a Smart City.
In support of this vision, the Provincial Electricity Authority (PEA) has initiated a development project under the PEA 4.0 policy, focusing on strengthening the stability of the electrical system and advancing ICT infrastructure to establish an efficient Smart Grid capable of supporting emerging technologies.
Smart Meter Pilot Project in Pattaya City, Chonburi Province, is part of PEA’s broader Smart Grid initiative. It involves the implementation of Advanced Metering Infrastructure (AMI) that connects electricity users to the grid through the installation of smart meters.
Smart Meters are the core equipment installed for electricity users. These devices are directly connected to PEA’s centralized control system and provide real-time electricity usage data for each household, enabling more efficient power management and system monitoring.

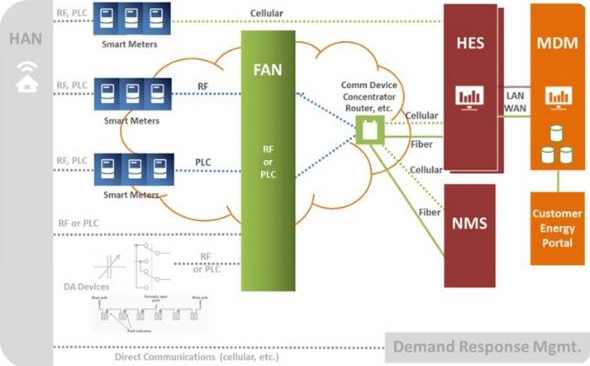

AMI System Architecture
System Overview
Head-End System (HES)
- Meter provisioning and registration
- Data collection
- Firmware management
- Configuration management Event and exception notifications
- Endpoint disconnect and reconnect
- Data storage and viewing
Meter Data Management (MDM)
- Data Collection
- Validation, Estimation, Editing (VEE)
- Calculations
- Reporting
Network Management System (NMS)
- Asset Visualization
- Topology Discovery
- Firmware Management
- Mesh Diagnostics
- Events and Logs
- Configuration
- Management
- Security and Risk Management
- Network Status Monitoring

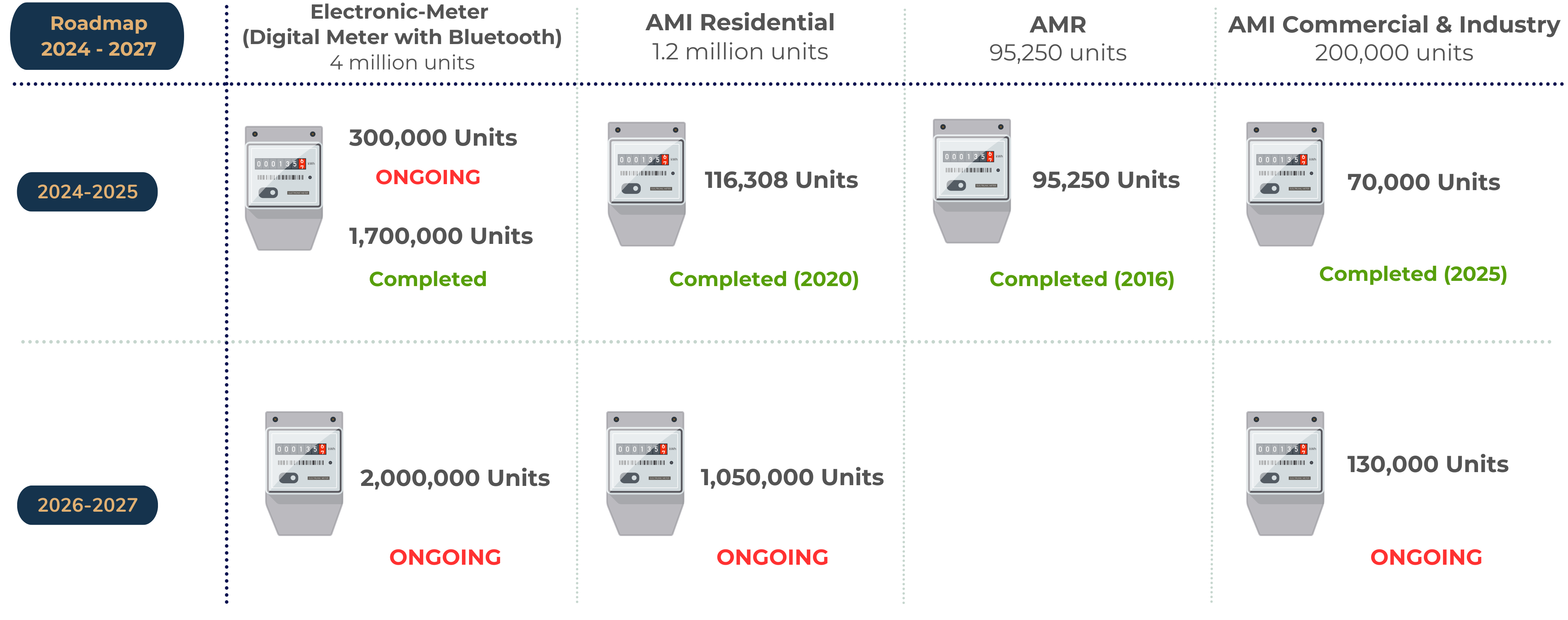

Advanced Metering Infrastructure (AMI) & AMR Roadmap
